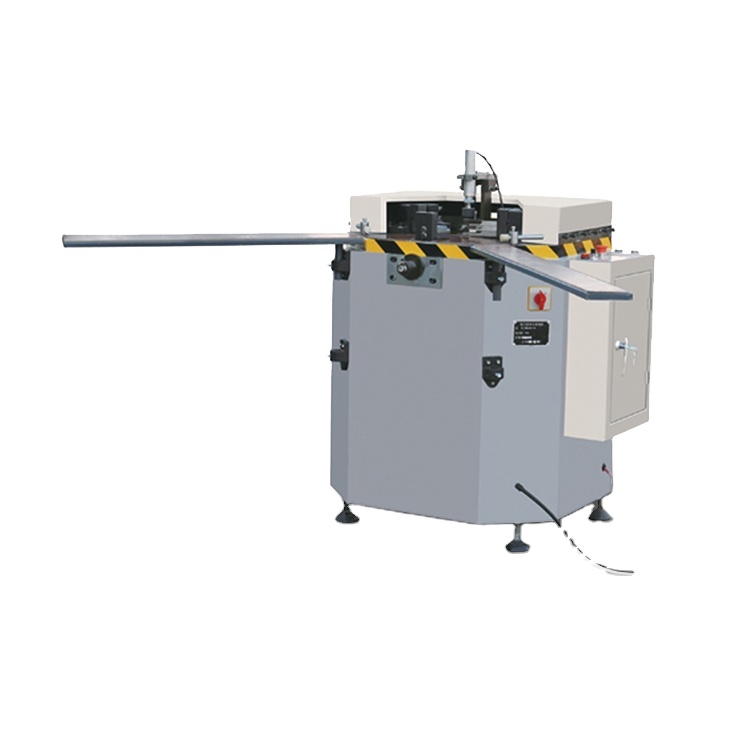

Simple operation aluminium machinery for windows and door single head corner crimping machine
Product Description
Simple operation aluminium machinery for windows and door single head corner crimping machine
Product Description

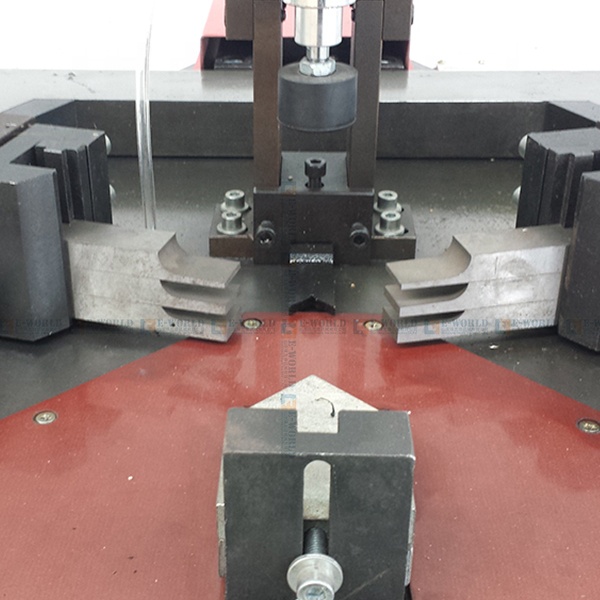

1). The aluminium machinery for windows and door single head corner crimping machine is used for Production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.
2).This machine is used for combining the aluminum profile together to be a whole frame after processed.
3).We also have double head Corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
5).We have in store, if you need, we can ship in short time for you.
2).This machine is used for combining the aluminum profile together to be a whole frame after processed.
3).We also have double head Corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
5).We have in store, if you need, we can ship in short time for you.
Specification
Model | LZJ02-120 |
Voltage | 380V 50Hz |
Rating Power | 1.5KW |
Rating Oil Pressure | 16MPa |
Air Consumption Pressure | 0.5-0.8MPa |
Motor Rotational Speed | 1400r/min |
Profile Processing Height | Max120mm |
General Pressure Of Corner Combining | 48KN |
Air Consumption | 20L/min |
Corner Crimping Casing Movement Journey | 85mm |
Profile Width | 90mm |
Contour Dimension L*W*H | 1850*1680*1210mm |
Simple operation aluminium machinery for windows and door single head corner crimping machine Features :
1.Used for crimping the 90 corner of aluminum window and door
2.Adopt new mechanical linkage device ,realized complete synchronous corner combining
3.Adjustable locating device suitable for various sections and sizes processing
4.Left and right punching heads adopt hard synchronous feeding device ,thus avoided useless
5. deformation and made the connection more firmly.
6.Easy machine setting due to the synchronous feeding device.
1.Used for crimping the 90 corner of aluminum window and door
2.Adopt new mechanical linkage device ,realized complete synchronous corner combining
3.Adjustable locating device suitable for various sections and sizes processing
4.Left and right punching heads adopt hard synchronous feeding device ,thus avoided useless
5. deformation and made the connection more firmly.
6.Easy machine setting due to the synchronous feeding device.
Packing & Delivery
Our factory can supply the goods in time 15 days after the contract is signed
wooden case and seaworthy package for Simple operation aluminium machinery for windows and door single head corner crimping machine It can also be packed according to your requirements
