Home > Products > Insulated Glass > 2.5m IGU Insulated Glass Unloading Machine

2.5m IGU Insulated Glass Unloading Machine

  • 2.5m IGU Insulated Glass Unloading Machine
  • 2.5m IGU Insulated Glass Unloading Machine
  • 2.5m IGU Insulated Glass Unloading Machine

2.5m IGU Insulated Glass Unloading Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days
    Packaging: Plastic film and wooden pallet for necessary parts.
    Productivity: 600-700 pieces per day
    Brand: WEILI & WGM
    Transportation: Ocean
    Place of Origin: Shandong, China
    Supply Ability: 5 sets per month
    Certificate: ISO
    HS Code: 846490
    Port: Qingdao Port

Basic Info

Model No.: WLXP2500

Product Description

Main structure

The IGU Insulated Glass Unloading Machine is composed of PLC control system, machine-head section, transportation section, sucker-structure section, servo drive section, etc. It adopts Mitsubishi PLC control, 10 inches touch screen. The dynamical system adopts 3 servo motor drives, it is easy to operate. The putting way for glass is of common putting, up/down putting. The machine-head automatically goes up to the glass height, if glass size is too small, it is not necessary to go up. The servo motor drives the reduction gear by chain sprocket on the liner track to make the machine head up and down, so that it can accurately the needed height.


Main machine parameter

1. Max glass size: 2500-3000mm

2. Glass thickness: 12-48mm

3. Suction arm speed: 0-12m/min

4. The max size of suction arm stretched out: 800mm

5. The work angle of swing arm: 84~100°

6. Air consumption: 100L/min

7. Total power: 10KW

8. Total weight: 2000KG

9. Dimension: 3150x2600x3350mm



Main electrical component (Standard configuration)


No.

Name

Brand

Origin

1

Servo motor

Panasonic

Japan

2

Control system(PLC)

Panasonic

Japan

3

Liner rail

HIWIN

Taiwan

4

Photoelectric switch

Autonics

South Korea

5

Approach switch

Autonics

South Korea

6

Low-voltage electric component

Schneider

France

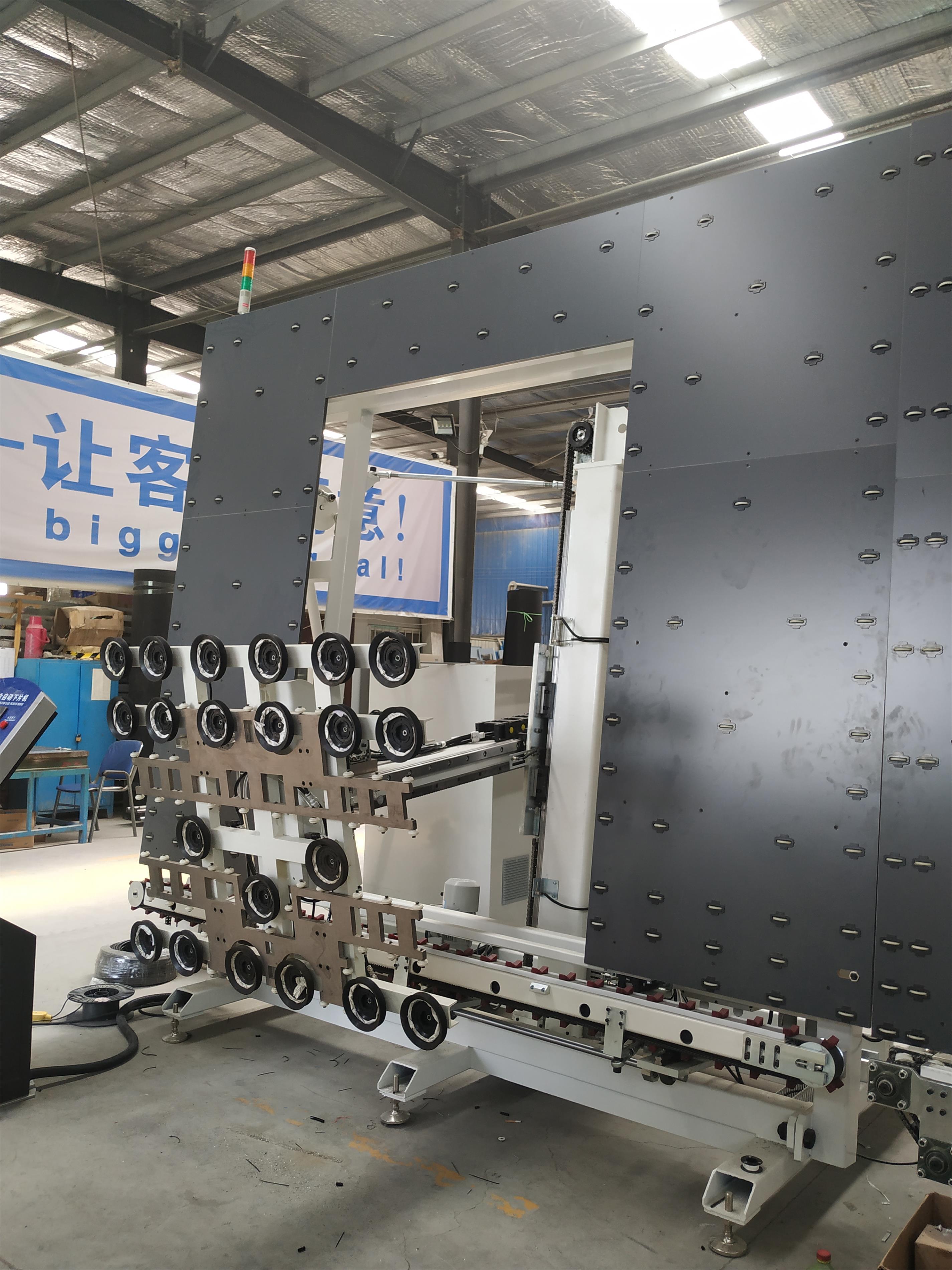

Machine Photos


2.5m IGU Insulated Glass Unloading Machine




JINAN WEILI MACHINE CO LTD

 Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.

Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.

Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
Strong market competition consciousness.Makes us always ahead of the advanced technology.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
