Factory 10th anniversary discount! Aluminum Profile Cutting Saw Double Head Mitre Saw
Product Description
factory Outlet Aluminum Profile Cutting saw Double Head Mitre Saw
Product Description

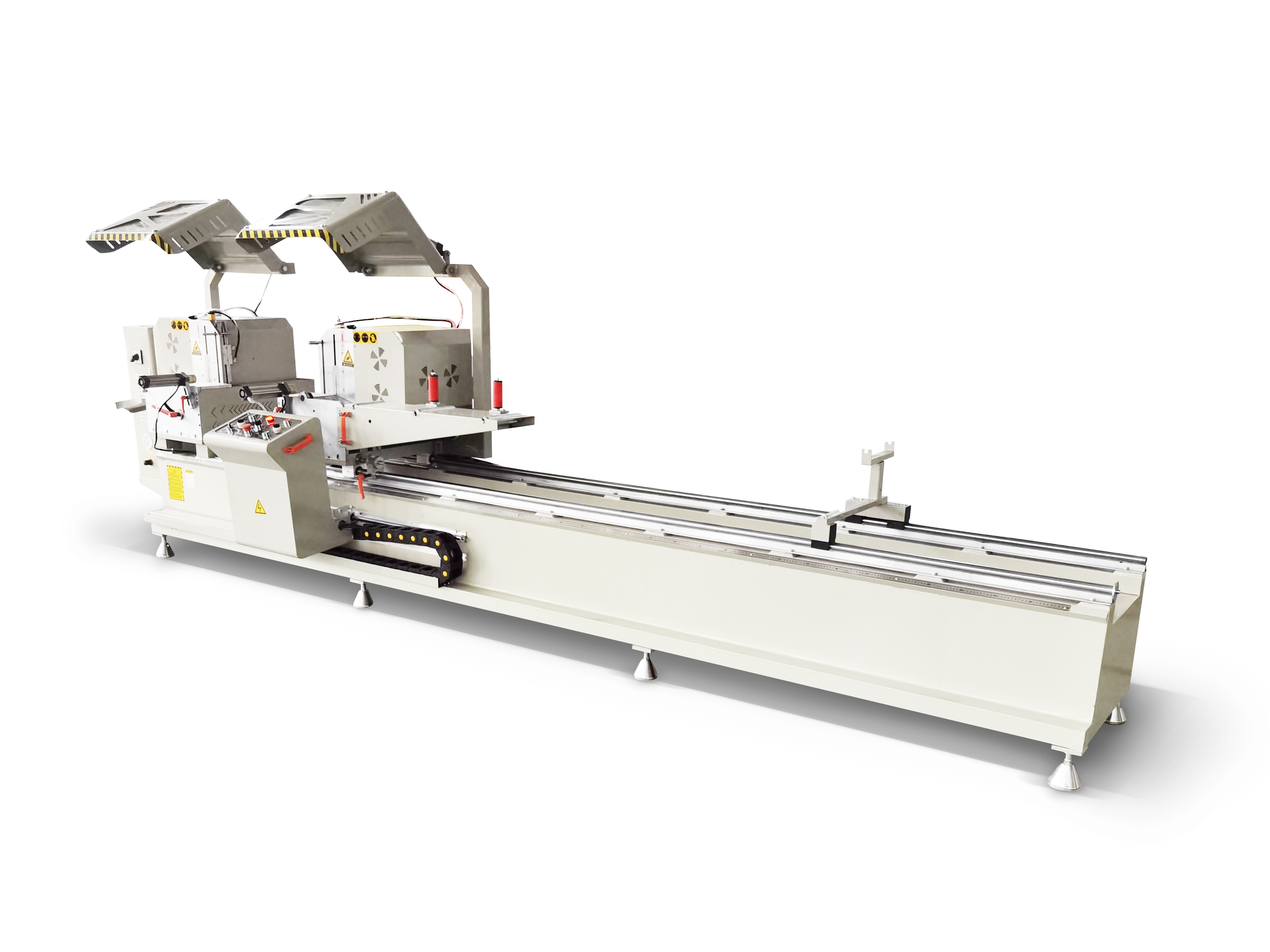

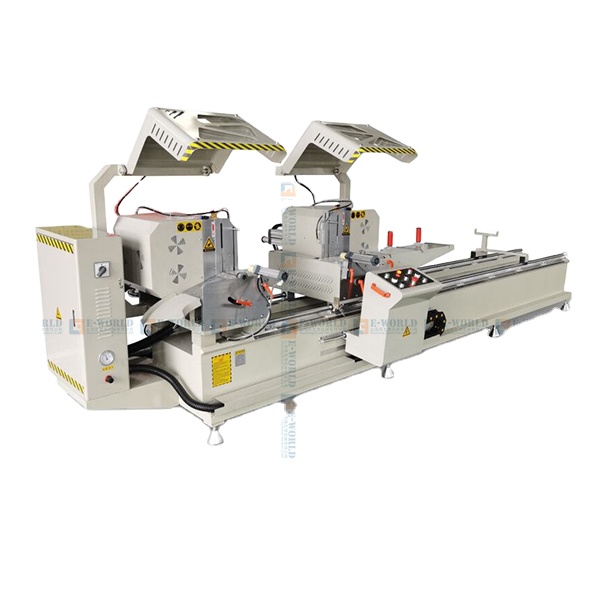

1.Aluminum Profile Cutting Saw Double Head Mitre Saw Introduction
Aluminum Profile Cutting Saw Double Head Mitre Saw is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle
and 90 angles and this machine can automatically control the angles.
2.Aluminum Profile Cutting Saw Double Head Mitre Saw Feature

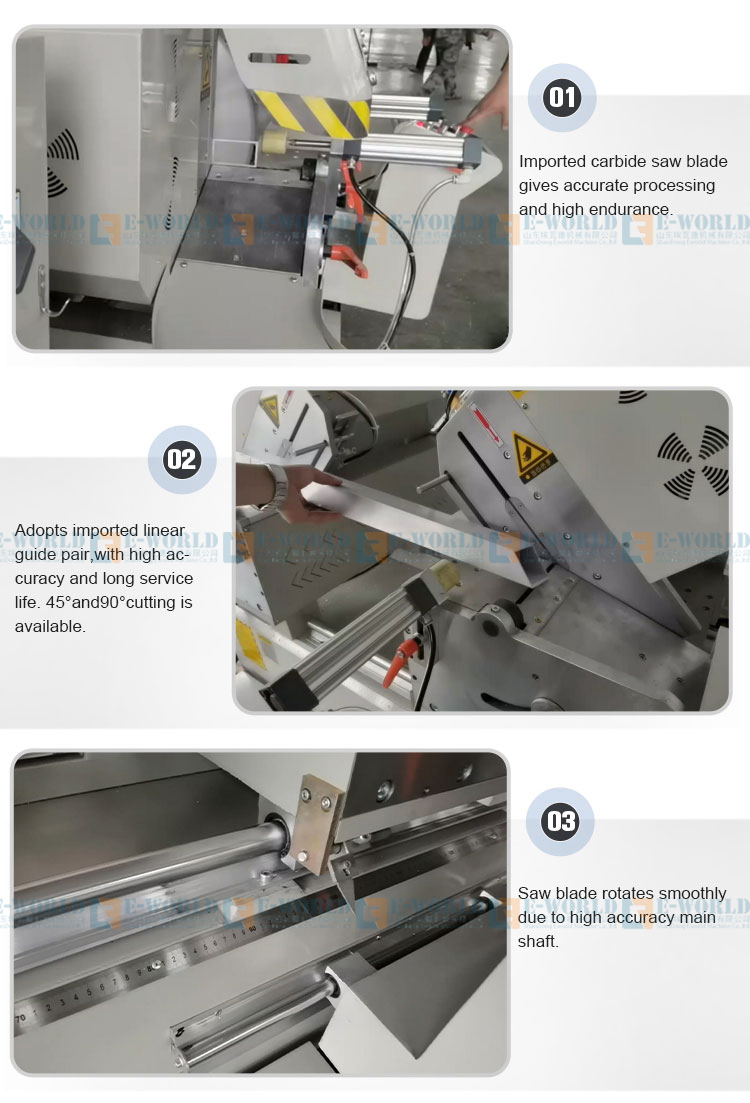

1.Imported carbide saw blade gives accurate processing and high endurance.
2.Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.
3.Saw blade rotates smoothly due to high accuracy main shaft.

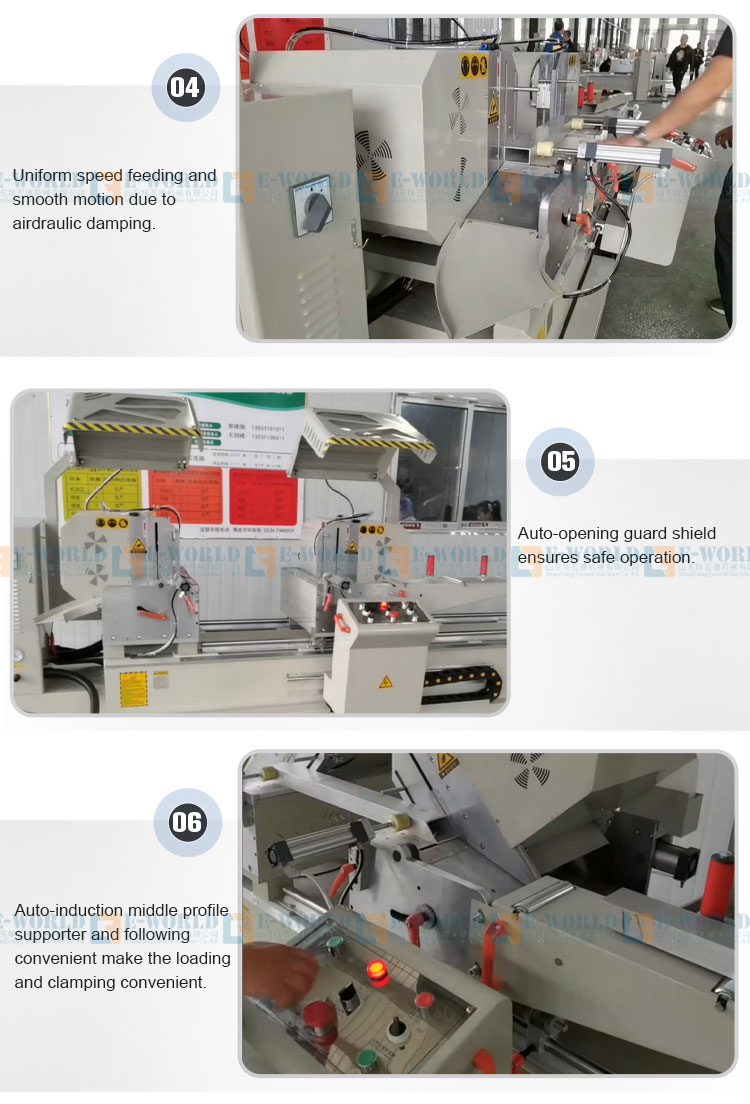

4.Uniform speed feeding and smooth motion due to airdraulic damping.
5.Auto-opening guard shield ensures saft operation.
6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.
7.Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available
Aluminum Profile Cutting Saw Double Head Mitre Saw is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle
and 90 angles and this machine can automatically control the angles.
2.Aluminum Profile Cutting Saw Double Head Mitre Saw Feature
1.Imported carbide saw blade gives accurate processing and high endurance.
2.Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.
3.Saw blade rotates smoothly due to high accuracy main shaft.
4.Uniform speed feeding and smooth motion due to airdraulic damping.
5.Auto-opening guard shield ensures saft operation.
6.Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.
7.Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available
Specification
MODEL | LJZ2-450*3700A |
Input voltage | 230/460V /3/60Hz |
Input power | 3Kw |
Air pressure | 0.5~0.8MPa/ 120psi |
Air consumption | 60L/min |
Motor rotation speed | 2800r/min |
Cutting length | 400~3700mm |
Cutting length tolerance | + 0.005 |
Cutting angles | 90, 45 |
Cutting width | 10~120mm |
Cutting height | 10~200mm |
Saw feeding speed | 0~3m |
Saw blade standard | 450mmx4.4x30xZ120 |
Overall dimensions | 4.5x1.2x1.4m |
